47-079-01452
This is a recently drilled injection well in Putnam county. We visited the facility and took photographs in 2013 and feel that this facility design should be a model for similar Class 2 facilities in the state. The site is in the Amherst Plymouth Wildlife Management Area, about 3/4 of a mile from the gate.
We have a YouTube video showing this well's facility. Photos taken at the same time appear below.
Well drilled in 2008 for injection.
Formation into which waste is injected -- Big Injun
Geographic location: latitude 38.529284, longitude -81.838173
Documents
April 2016 inspection report -- MIT failure reported
Goggle Earth Imagery

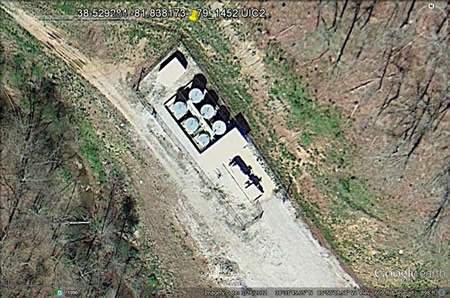

View of facility with tank battery in cement secondary containment. Truck is inside gate on cement unloading pad.
We visited the site in September 2013:

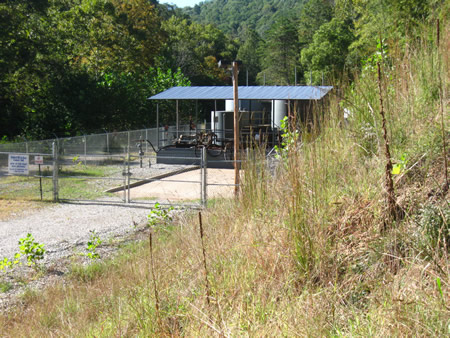

The site is entirely fenced. This photo is taken from the hillside looking down. Access to the well is also limited by a locked gate at the Wildlife Management Area entrance. Citizens can use the management area for hiking or hunting but are not allowed to take vehicles into the area.
This photo is looking approximately north. The entrance gates are to the right. There is a cement unloading pad, a work area and then 6 large tanks within secondary containment.

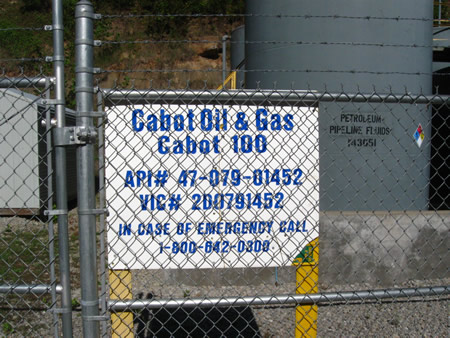

The site had good signage. This is one of the two signs on the fence.

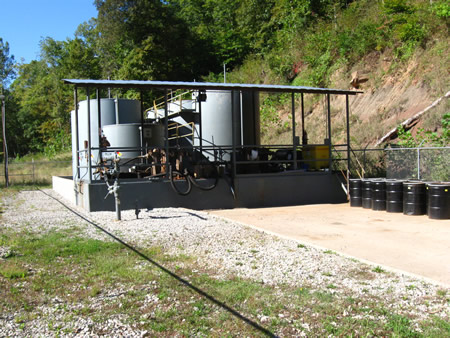

The unloading area is surfaced with cement and sloped with curbs so that spilled material enters a sump below the steps (barely visible to the right, just behind the black barrels).

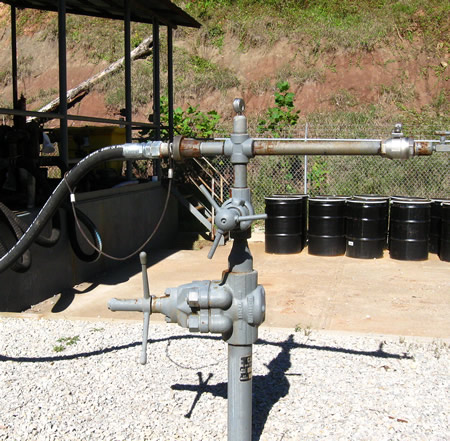

The wellhead was plainly visible.

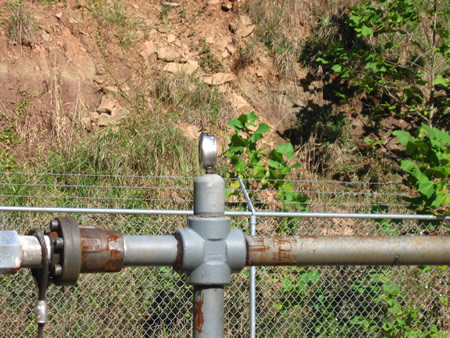

On top of the wellhead there was a pressure gauge facing the work area for monitoring injection pressure.

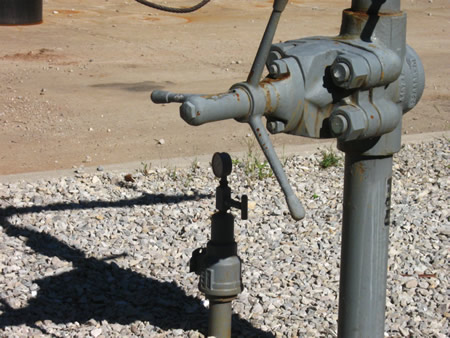

There was also another gauge below and behind the wellhead. This appears to be the gauge for measuring the annulus pressure.

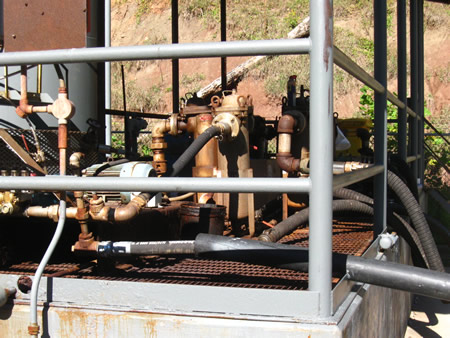

The work area had a steel grate so any spilled fluids went into a sump. The rubber hose/pipe connecting the pump to the wellhead is in the foreground. Hoses used by the trucks to unload are placed after unloading so their ends point to the grate.

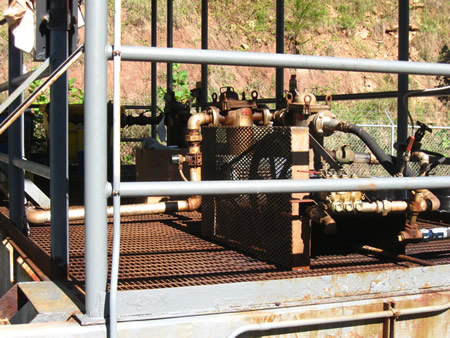

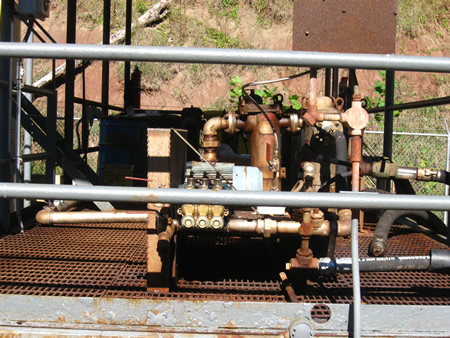

The pump is in the foreground -- possibly 3 stages.
Other equipment in the work area includes tall vessels that might be filters.

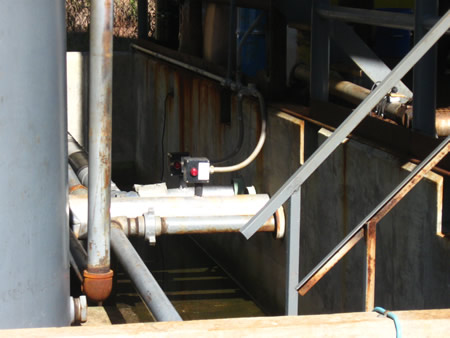

Between the work area and the tanks is a sump. The tank containment, sump and work area is entirely constructed of cement.

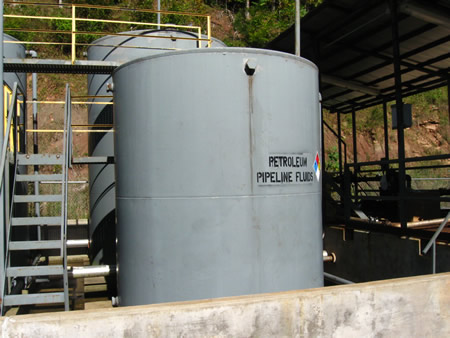

The 6 tanks are connected with a gantry/walk.

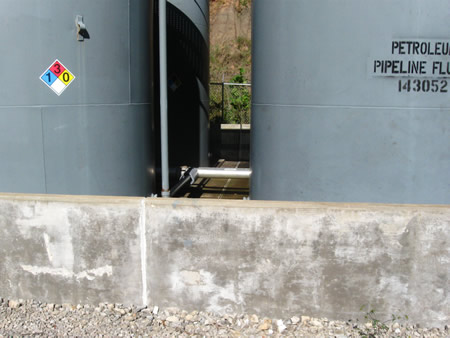

The secondary containment appears to be adequate. It should be able to hold the contents of the largest tank -- not all the tanks. There's no possibility of spilled fluids contacting the ground.

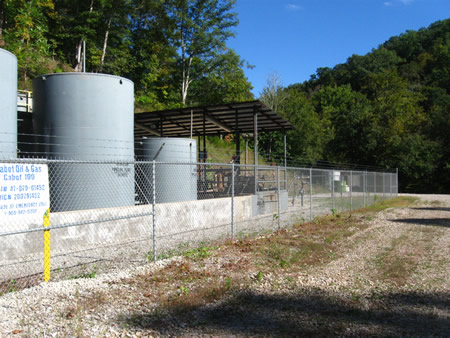

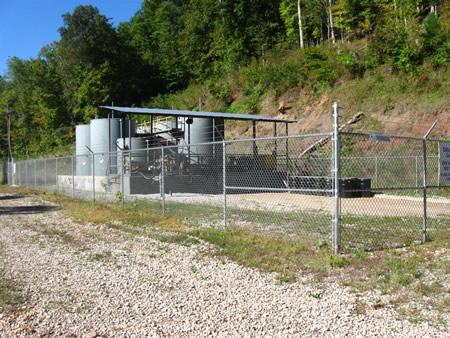

This photograph was taken looking south along the fence. We didn't smell any odors at the site, even though a vac truck had been at the site just before we arrived.
