47-039-01168
Well drilled in 1944
Producing formation(s): Big Lime, Oriskany
Geographic location: latitude 38.495491, longitude -81.719028
Visited in 2012
This is an abandoned well north of Campbell's Branch near Camp Virgil Tate in Kanawha county. The well is considered abandoned because the operator has not reported production since 2004, making this an abandoned well. The operator reported no production in 2007, 2008, 2009 and 2011. No production reports were filed for 2005, 2006, and 2010. According to state law, an operator must apply for a plugging permit within 60 days of well abandonment (in this case 2005), something this operator hasn't done.
A 2012 legislative audit found serious problems in the Office of Oil and Gas' abandoned well program.
Problems we noted at this well include trash (cable, pipe and a plastic bottle), a gas and fluid leak at the casing head, and the absence of an API number. The access road is in poor condition and appears to be only useable by an ATV.
This is an abandoned well at the northeast end of Campbell's Branch near Camp Virgil Tate.

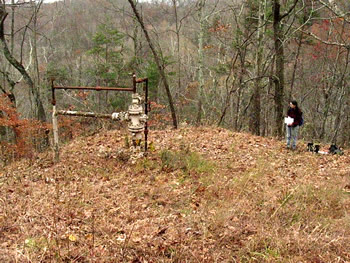

Molly, standing nearby, gives an idea of the size of the wellhead. The condensate storage tank is off to the right, out of the photo's frame.
There was a gas leak at the wellhead at the casing head.
There was an oily substance leaking out of the bottom of the casing head.

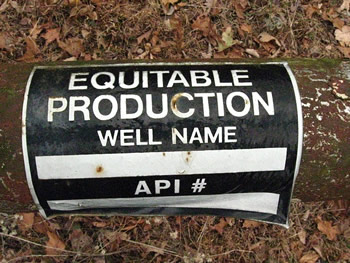

The well had a sticker identifying an operator but there was no API number as required.
The plastic condensate storage tank sits in adequate secondary containment. The containment has a rainwater drain.
There was miscellaneous trash scattered around the edge of the site, including steel cable, pipe and a plastic gallon jug.
