47-039-06155
Well drilled in 2008
Producing formation(s): Berea Sandstone, Lower Huron Shale, Rhinestreet Shale, Marcellus Shale
Geographic location: latitude 38.576027, longitude -81.700511
Visited in 2011
In April 2011 we made our first visit to this vertical Marcellus well site in Kanawha county. We've made subsequent visits with the surface owner. Recorded video interviews with the surface owner is incorporated in two YouTube videos, You Get Used To It and Bottled Water.
In the first video the surface owner explains how the operator sprayed hydraulic fracturing flowback fluid toward the pit, rather than into the pit. Overspray went into the forest killing large trees as it drained down the hillside to the stream below the pad. In the second video the surface owner describes the contamination of their drinking water supply by the well's drilling and hydraulic fracturing causing adverse health effects. We created a YouTube video based on our site visit.
The large plastic condensate storage tank tipped and floating within its secondary containment was the first thing we saw when we entered the site.
A large number of dead trees are found beyond the edge of the pad at the end, past the former location of the pit.
And below the fill slope.
These dead trees went all the way down to the stream below the site.

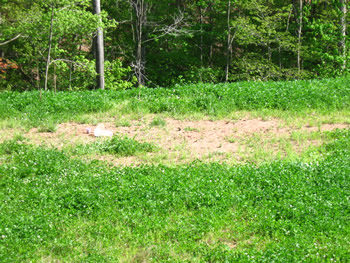

There were two large bare areas on the pad. Surface soil samples from both found chloride at 595 ppm.

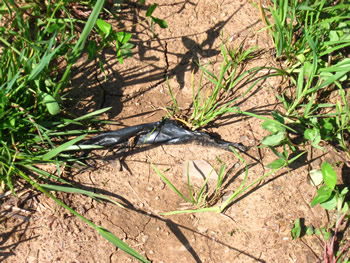

In the bare area nearest the wellhead, away from the former location of the pit, there was a line of embedded pit liner.
A puddle within the vegetated part of the pad, near where the pit had been, had chloride at 46 ppm.
