47-085-09669
This Ritchie county injection well is now plugged. It was converted from a production well and used for commercial injection. This and another injection well (47-085-09909) are elements of a waste facility, part of which is devoted to the recycling of Marcellus flowback for reuse in fracturing other Marcellus wells. The facility's location is off Route 50 close to the primary area for horizontal Marcellus activity in West Virginia. A separate page has links to Google Earth images of the facilty. Besides the two injection wells, the facility has two large pits to store hydraulic fracturing flowback fluid. The documents are arranged in groups with narrative. This waste facility site has been associated with surface and groundwater pollution. Documents associated with 47-085-09909 explain recent ground and surface water monitoring by the Office of Oil and Gas.
Well drilled in 2007. Converted for injection in 2009? Plugged in 2015.
Formation into which waste is injected -- Marcellus shale
Geographic location: latitude 39.289315, longitude -81.012964
Major issues
- Facility with which this and another injection well are associated has been linked to ground and surface water contamination.
- Inadequate MIT and operator reporting on monthly WR-40 forms indicates problems with well's mechanical integrity.
Documents
The well was originally drilled as a Marcellus vertical well by Jay-Bee — 2007 completion report and well permit release.
Operator's letter about recycling facility and Office of Oil and Gas notes
2013 lab tests of fluid, including isotopes
Original 2009 UIC well application
Laboratory analysis of flowback from the Booker #4 horizontal Marcellus well (possibly Booher #4 — 47-017-05693).
Letter from West Virginia Geological and Economic Survey to Office of Oil and Gas about location as UIC well. Concern about pre-1929 well within Area of Review.
2010 Mechanical Integrity Test. Note that the pressure applied to the "backside" (whether tubing or production casing is unknown) was about half of the permited injection pressure of 1995 psi. Normally MITs are performed with pressures to the tubing annulus at one and a half times the maxiumum injection pressure. Reporting on WR-40 forms indicates significant leakage of tubing/packer.
Schematic of well and intended plan of UIC site
Three inspection reports for 2011 and 2012
Three WR-40 forms for 2011 and 2012
2013 Draft modified UIC permit (allowing third party haulers)
A 2o13 collection of FOIA documents and documents contents list. Some of the documents presented above come from this FOIA collection.

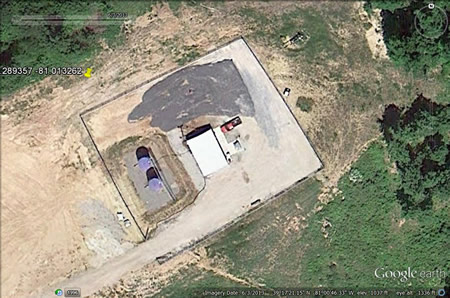

Goggle Earth Imagery
The injection well was situated within the fenced compound.
