RUSLE2

West Virginia’s Office of Oil and Gas is in the process of revising and updating its 1992 Erosion and Sediment Control Field Manual which covers Best Management Practices (BMPs) for access road and well site construction. The revision is much needed and we hope industry follows it better than it did the old manual.

The BMPs are necessary for important reasons. The EPA gave the oil and gas industry an exemption from Clean Water Act rules covering stormwater discharges. Why the industry needs this exemption when every other construction industry (except mining) is covered by these regulations is beyond us. The EPA was forced to abandon part of this exemption in a strongly worded Ninth Circuit Court’s decision against the EPA. The EPA has a page devoted to the NPDES requirements of oil and gas.

These regulations are important because the issue isn’t just sediment poisoning streams and lakes, but also because of contaminated runoff from well sites. What types of contamination? Heavy metals, organics and other chemicals used in drilling and fracturing or produced by the equipment on the site. This is why bulk chemical storage on well sites during drilling and fracturing is a huge issue. There should be no possibility of chemicals contacting the ground or water during storage or by accidental spills.

Two publications that give an idea of these impacts are related to natural gas drilling within the city limits of Denton, Texas. Kenneth Banks and David Watchal carried out a study sponsored by the EPA which examined the effects of drilling: Demonstrating the Impacts of Oil and Gas Exploration on Water Quality and How to Minimize These Impacts Through Targeted Monitoring Activities and Local Ordinances. David Watchal’s doctoral dissertation, Characterizing Storm Water Runoff from Natural Gas Well Sites in Denton County, Texas, is made up of 4 papers on the issue. The first paper discusses chemicals found in stormwater runoff from gas well pads.

Industry, in an attempt to forestall regulation, has recently created a handbook, Reasonable and Prudent Practices for Stabilization (RAPPS) of Oil and Gas Construction Sites or RAPPS (download link is on this American Petroleum Institute web page). I had been familiar with the 2004 version but was unaware until recently of the expanded and updated version released by the API and other industry associations in 2009.

The newest RAPPS depends heavily on the research by Watchal and Banks and especially on Watchal’s work with RUSLE2 modeling program. The RAPPS manual creators used RUSLE2 (in a special construction version not available yet publicly which has sediment control devices not available in the standard RUSLE2 program) to create specific BMPs for management and control of sediment at oil and gas sites.

RUSLE2 was created by the USDA Natural Resource Conservation Service (NRCS), the USDA’s Agricultural Research Service, and the University of Tennessee. The version I’ve been using I downloaded (it’s free to the public) from the USDA ARS website. Database specifics for West Virginia soils and climate were downloaded from the NRCS website for RUSLE2.

The program allows me to model soil loss based on a suite of activities. Because of a the size of a well site and the soils here, the losses are measured in many tons per acre per year. Techniques to control and manage the soil loss are able to be modeled, such as silt fences or straw mulch, to gauge the best method to control sedimentation.

Wachal’s dissertation demonstrates how modeling can be used and, with few changes, this is what the creators of the new RAPPS manual did. Watchal’s work was based on the construction of gas well pads in Denton where construction on sites with more than a 10% grade is not allowed by city regulation. Sites with low grades are also within the optimal range for RUSLE2. Sites with a more extreme grade create situations which RUSLE2 isn’t able to model or the techniques/controls aren’t available (at least on the public version I’ve been using). The RAPPS manual is best suited for these low grade slope situations.

RUSLE2 isn’t hard to learn, but the program isn’t intuitive, and user manuals are opaque. Training is usually hands-on in several-day seminars which I’m not able to take advantage of. It takes time to learn the soil science terminology and I’m thankful that RUSLE2 does all the math.

The three major inputs are location by county, soil type, and slope length and grade. The NRCS has specific county climate data and soils for download at the NRCS RUSLE2 site. The NRCS also has downloadable county soil maps and handbooks.

Starting out, I used a generic Kanawha County (Charleston area) climate location in an OSM folder in the original RUSLE2 program download (RUSLE2 is also used by the Office of Surface Mining), and inputted a generic clay loam soil with a K of 0.35 (one of the default figures used by the creators of the new RAPPS). Actually, where we live on the ridge the soil type is Gilpin/Upshur with a Gilpin horizon (brown clay with a K of 0.32) and Upshur horizon (red clay with a K of 0.43). The higher the K value, the more erosive the soil is. As I’ve been learning the program I’ve been using more specific climate and soil data.

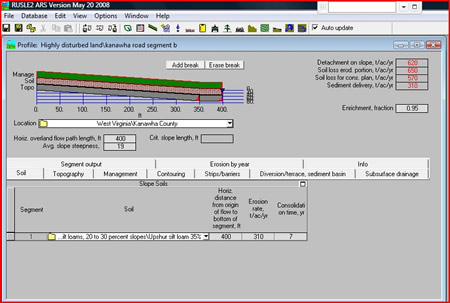

Here is a road segment profile screen shot from the program. The segment has two grade components (350 feet at 20% grade, and 50 feet at 9% grade) in our area with Upshur soil (K=0.43). The total sediment for this length is 310 tons per acre per year from a bare bulldozed surface.

We believe roads should have a cleared width of between 25 to 30 feet. For this length that makes 0.27 acre in size, or 84 tons of soil lost from graded surface. Well operators like to “daylight” roads to 50 or 60 feet width, believing that cutting back all the trees helps keep the road dry (meaning operators can be sloppy in drainage control). Daylighting is effective only minimally and not at all when the soil is cool. A 60 foot cleared road width would mean 164 tons per year lost for this road section. By being more reasonable in site clearing practices operators could cut the soil loss in half. The goal is under 5 tons per acre per year soil loss and could generally be achieved by use of mulch, gravel road surface, immediate reseeding, and sediment management devices like silt fences.

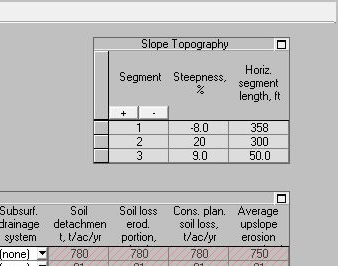

Here is a worksheet screen shot detail for the same segment. Worksheets allow multiple management plans to be examined side by side. For this worksheet the first row is for a bulldozed surface. The average upslope erosion figure in the right-hand column is sediment loss and is 310 tons per acre per year. The second row is a graded surface covered with straw mulch at two tons per acre and with three silt fences. The sediment loss is a tenth of what it would be without any controls. The third row is a graded surface with mulch, temporary and then permanent seeding with 3 silt fences. The vegetated surface has a profound effect in limiting soil loss.

This same segment could also be a hillside where a well pad would be cut in. If the width of the disturbed surface were 300 feet for the cut, then the disturbed area is 2.75 acres. Roads because of their length and width and well pads because of the large area of surface disturbance on hillsides can create a huge soil loss. Sites we’ve seen have not had mulch or seeding until after the well is completed, sometimes more than a year later. The reports we’ve heard of huge amounts of sediment entering ponds, streams and rivers are not at all exaggerated.

More about RUSLE2 later. I’ve just received a copy of a special construction version not available to the public as yet.
